### 1. Introduction

Dredging is a periodically required activity in coastal and fluvial regions with the purpose of maintaining sea routes, environment protection and reservoir capacity. River channel and harbor dredging produces millions of tons of soil annually. Managing these enormous amounts of dredged soil remains an unsolved problem. One of the proposed methods of handling dredged soil is to create artificial shallows in a nearby bay. From an environment perspective, it was confirmed that there are beneficial effects such as increasing bottom life and enhancing water purification capacity (Kazama et al., 2006). In contrast, the stability of artificial shallows composed of dredged soil against incident waves is of concern because of the low weight of fine sediments in the dredged soil. Nakamura et al. (2012a, 2012b) conducted experimental and numerical research on the characteristics of the topographic change of shallows comprised of fine sand. However, these studies had limitations because they only considered non-cohesive fine sand, whereas actual dredged soil contains fine sediments with cohesive forces. Thus, there is little understanding of the characteristic of cohesive fine sediment transport and the topographic change of artificial shallows made up of dredged soil.

Most research on sediment transport phenomena has been based on non-cohesive sediments and there is little research that accounts for the effects of cohesive forces besides Son and Hsu (2008). Ashida et al. (1982) proposed a formula concerning the non-dimensional critical shear stress and the nonequilibrium sediment transport of the sand particles. This formula considered the effects of the fine sediments (hereinafter called mud) with cohesive force existing in the pore space of the sand particles and confirmed the validity of the formula through comparison with experimental tests. However, there was no attempt to apply the formula to wave fields, which is a more energetic environment, to analyze the characteristics of sediment transport covering the cohesive effects in mixed soil coexisting with sand and mud such as dredged soil or the real sea bottom. Consequently, the characteristics of sediment transport in mixed soil are not fully understood.

In this study, a sediment transport calculation considering the cohesive effects induced by mud in the pores of sand particles is proposed and the basic characteristics of the calculation are investigated taking into account the correlation between cohesive intensity and the bed-load sediment transport rate. In addition, the calculation is incorporated into a three-dimensional coupled fluid-structure-sediment interaction model (FSSM) developed by Nakamura et al. (2011), which can analyze the interaction between waves and topographic change, and applied to the condition of hydraulic experiments on the topographic change of shallows composed of fine sand (Nakamura et al., 2012a). Furthermore, a sensitivity analysis of the modified model is carried out in terms of the effects of cohesive force on the topographic change of the shallow, which comprises a soil mixture based on the assumption that mud exists in the pores of the sand particles.

### 2. Sediment Transport Calculation Considering Cohesive Effects

Sediment transport calculation considering the effects induced by mud contained in the pores of the sand particle is proposed following Ashida et al. (1982). Mud is defined as silts and muds having cohesive characteristics in this paper. Specifically, the critical Shields parameter

*τ*and bed-load sediment transport rate_{*c}*q*are modified to consider the cohesive effects of the mud._{i}Ashida et al. (1982) considered the soil mixture combined with spherical sand particles with uniform particle diameter

*d*_{50}and mud filling in the pores of the sand particles as bottom sediment. It was assumed that the friction between the sand particles did not change even for the condition without mud. That is, even though the mud is eliminated, sand particles can maintain a static stable state. Thus, we now have the mud-induced cohesive force*F*expressed by:_{C}in which

*k*1*′**d*^{2}_{50}is the cohesive area of the mud contributing to the cohesive resistance and*f*is the cohesive resistance force of the mud per unit surface area. Here, assuming the cohesive area per contact point between sand particles is_{c}*a*, it can be obtained approximately from a simple geometric relationship as in Ashida et al. (1982). When one sand particle is supported by the number of contact points,*n*, this can be given by*k*1*′**d*^{2}_{50}=*an*, and finally, Eq. (1) can be expressed as:in which m is the porosity;

*p*is the content ratio of the mud;_{f}*ω*is the water content; and*s*is the specific weight of the sand particle (=*ρ*/_{s}*ρ*, where_{w}*ρ*is the sand particle density and_{s}*ρ*is the water density). Additionally, there are the submerged weight of the particle,_{w}*W*, and the drag and lift forces,*F*and_{D}*F*, which are triggered by the bottom velocity. The forces acting on the sand particles, a part from the cohesive force_{L}*F*expressed in Eq. (2), are expressed by:_{C}in which

*g*is the gravitational acceleration;*ε*is the shading coefficient;*C*_{D1}and*C*are the turbulent drag and lift coefficients;_{L}*k*is the ratio between_{L}*C*_{D1}and*C*(=_{L}*C*/_{L}*C*_{D1});*v*is the relative flow velocity acting on the particle for the mean transport velocity_{r}*v*of a sediment particle in bed-load motion; and_{b}*C*=_{FD}*πεC*_{D1}*ρ*_{w}d_{50}^{2}/8. In the following,*τ*and_{*c}*q*are derived by incorporating the effects of_{i}*F*._{C}### 2.1 Critical Shields Parameter

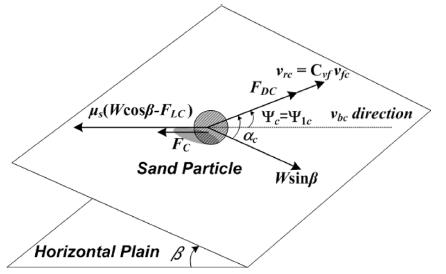

In the critical state, the force acting on a sand particle exists as shown in Fig. 1. Here,

*v*is the friction velocity;_{f}*C*is the coefficient of the friction velocity;_{vf}*a*is the angle between the flow velocity*C*and the direction of the steepest bed slope; Ψ is the angle between the flow velocity_{vf}v_{f}*C*and the sediment transport velocity_{vf}v_{f}*v*; and Ψ_{b}_{1}is the angle between the relative flow velocity*v*and the sediment transport velocity_{r}*v*. The values_{b}*F*,_{DC}*F*,_{LC}*v*,_{fc}*v*,_{bc}*v*,_{rc}*α*, Ψ_{c}*and Ψ*_{c}_{1c}represent those of*F*,_{D}*F*,_{L}*v*,_{f}*v*,_{b}*v*,_{r}*α*, Ψ and Ψ_{1}in the critical state. In addition,*β*is the angle of the steepest bed slope and*μ*is the static friction coefficient of the sand particle. In this case,_{s}*v*= 0, which means that_{bc}*v*=_{rc}*C*and Ψ_{vf}v_{fc}_{c}= Ψ_{1c}, because it is under the critical state. The formulations of Ψ_{c}and*v*_{rc}^{2}are given as follows from the force balance in the directions the same as and perpendicular to*v*:_{bc}In Eq. (7), Ψ

_{c}and*a*have the same sign and |Ψ_{c}_{c}| ≤ |*a*|. Here, the unknown parameters,_{c}*v*_{rc}^{2}and Ψ_{c}, are determined by iterative calculations. Defining*τ*_{*c0}as a critical Shields parameter in the horizontal plane (*b*= 0) without considering the cohesive force (*F*= 0),_{C}*τ*can be written by the following equation:_{*c}in which

*v*^{2}_{rc0}and*v*^{2}_{fc0}are*v*^{2}_{rc}and*v*^{2}_{fc}in the horizontal plane (*b*= 0) without the cohesive force (*F*= 0), and_{C}*v*^{2}_{rc0}is obtained as follows from substituting*F*=_{C}*β*=*Ψ*=_{c}*Ψ*= 0 into Eq. (6):_{1c}Furthermore, for the cross-sectional two-dimensional phenomenon, the following equation is obtained because of

*α*= Ψ

_{c}*= Ψ*

_{c}_{1c}= 0:

In addition, the influence of the cohesive force is considered to be a pickup function of suspended sediment through the value of the critical Shields parameter

*τ*._{*c}### 2.2 Bed-Load Sediment Transport Rate

The bed-load sediment transport rate

*q*per unit width and unit time is defined as follows (Engelund and Fredsøe, 1976):_{i}where

*p*is the percentage of sediment particles in bedload motion in the surface layer of the bed, which is expressed as:_{EF}in which

*μ*is the dynamic friction coefficient (_{d}*μ*≤_{d}*μ*) and_{s}*τ*is the Shields parameter, which is defined as:_{*}

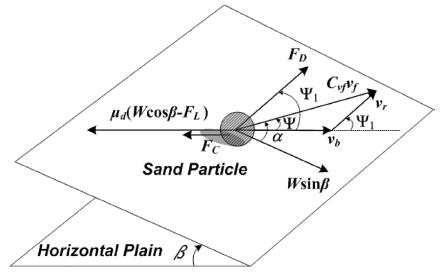

Fig. 2 shows the agitating and stabilizing forces acting on a sand particle in the bed-load motion. The equation of motion in the same direction as the sand particle movement (i.e., the direction of

*v*) is given as:_{b}In the same way, the equation of motion in the direction perpendicular to the sand particle movement is:

In addition, the simple geometric relationship between

*v*,_{b}*C*and_{vf}v_{f}*v*gives:_{r}Here, there are four unknown variables (i.e.,

*v*,_{b}*v*, Ψ and Ψ_{r}_{1}) and four equations, and*v*is computed through iterative calculations. Thus, the bed-load sediment transport rate_{bi}*q*is given by Eqs. (11) and (12) together with_{i}*τ*_{*c0}, which is obtained in the previous section. Furthermore, for the crosssectional two-dimensional phenomenon, the equation is summarized as follows from the relationship of*α*= Ψ = Ψ_{1}= 0:### 3. Characteristics of Sediment Transport Calculation Considering Cohesive Effects

In this section, the fundamental characteristics of the proposed sediment transport calculation are investigated based on Eqs. (10), (18) and (19) for a cross-sectional two-dimensional condition, for which there is no need to perform any iterative calculation. Specifically, sand particles with

*d*_{50}= 0.1 mm,*ρ*=2.65 × 10_{s}^{3}kg/m^{3}and*τ*_{*c0}= 0.03 were assumed to be on the horizontal plane (*β*=0^{o}). The three cases for the water content*ω*(0.2, 0.5 and 0.8), two cases for the content ratio of the mud*p*(0.05 and 0.20) and three cases for the cohesive force per unit surface area_{f}*f*(0.1, 0.5 and 1.0 N/m_{c}^{2}) were then used as the main variables. The calculation without the cohesive force effect (*f*=0.0N/m_{c}^{2}) was also carried out for comparative analysis. Other parameters were*g*=9.80m/s^{2},*ρ*=9.97×10_{w}^{2}kg/m^{3},*C*_{D1}=0.45,*C*=10.0,_{vf}*k*=0.85,_{L}*ε*= 0.4,*μ*= 0.63 and_{s}*μ*=0.51, which are the same as used in Nakamura et al. (2011)._{d}

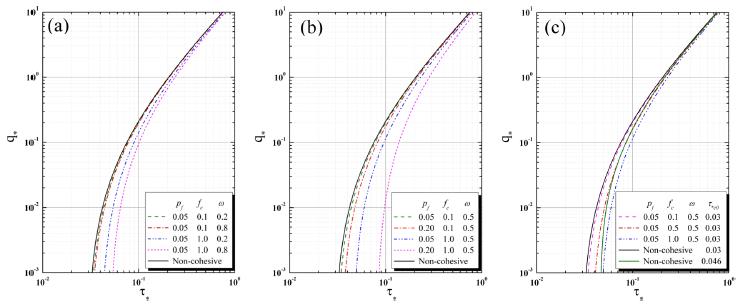

Fig. 3 shows the relationship of the non-dimensional bedload sediment transport rate

*q*_{*}versus the Shields parameter*τ*_{*}. As shown in Fig. 3(a), an increase in*w*causes an increase in the critical Shields parameter*τ*. In addition, it is observed that_{*c}*q*_{*}tends to decrease with an increase in*w*when*τ*_{*}is the same. However, the effect of*w*on*q*_{*}varies according to the value of*f*because the decline in_{c}*q*_{*}increases with an increase in*f*. A similar phenomenon is also observed in Fig. 3(b). Although a decrease in_{c}*q*_{*}according to an increase in*p*is small for_{f}*f*= 0.1 N/m_{c}^{2}, it is found that a decline in*q*_{*}for*f*= 1.0 N/m_{c}^{2}is larger than that for*f*= 0.1 N/m_{c}^{2}(see Fig. 3(b)). In Fig. 3(c), the value of*τ*increases with an increase in_{*c}*f*, and it is also found that_{c}*q*_{*}decreases with an increase in*f*for the same_{c}*τ*_{*}. Furthermore, the case of*τ*_{*c0}= 0.046, which is the solid green line without cohesive effects (*f*= 0.0 N/m_{c}^{2}), and the case of*f*= 1.0 N/m_{c}^{2}and*τ*_{*c0}= 0.03, which is the blue two-dot chain line, are compared based on the same critical Shields number*τ*because_{*c}*τ*_{*c}is about 0.046 when*f*= 1.0 N/m_{c}^{2}and*τ*_{*c0}= 0.03. A different trend in*q*_{*}is observed in spite of the same critical Shields parameter, that is,*q*_{*}for*f*= 1.0 N/m_{c}^{2}is smaller than that for non-cohesive effect consideration. This result emphasizes the importance of appropriate modeling taking into account the cohesive effects caused by the mud in sediment transport calculation because considering only the increasing effects of*τ*_{*c0}caused by the cohesive force is insufficient.### 4. Characteristics of Sediment Transport Calculation Considering Cohesive Effects

The three-dimensional coupled fluid-structure-sediment interaction model developed by Nakamura et al. (2011) is briefly described in this section. The model is composed of a main solver and three modules. The main solver is a large-eddy simulation (LES) based on a continuity equation and a Navier-Stokes equation for analyzing the motion of an incompressible viscous air-water two-phase fluid including the pore fluid inside the porous media taking into account the movement of the movable structure and topographic change. The three modules are a volume-of-fluid (VOF) module based on the multi-interface advection and reconstruction solver (MARS) to track the gas-liquid interface, an immersed-boundary (IB) module based on the body-force type of IB method dealing with the movable structure, and the sediment transport module to analyze the concentration of suspended sediment transport and the topographic change associated with bed-load and suspended sediment transport. The three modules are incorporated into the main solver with a two-way coupling technique to take into account the fluid-structure-sediment interaction. Here, the proposed sediment transport calculation was applied into the sediment transport module to take into account the cohesive effects caused by mud filling in the pores of the sand particles. It should be noted that, in this study, the IB module was not included because motion of the structure was not dealt with.

### 5. Application of the Modified Model Considering Cohesive Effects

The modified model was applied to hydraulic experiments on the topographic change of artificial shallows consisting of fine sand (Nakamura et al., 2012a). Subsequently, a numerical simulation was carried out on the supposed condition that the pores of the sand particles contained the mud with the cohesive force, and the sensitivity analysis of the modified model was conducted focusing on the relationship between the variation of the parameters (

*f*,_{c}*p*,_{f}*ω*) and topographic change of the shallow.### 5.1 Numerical condition

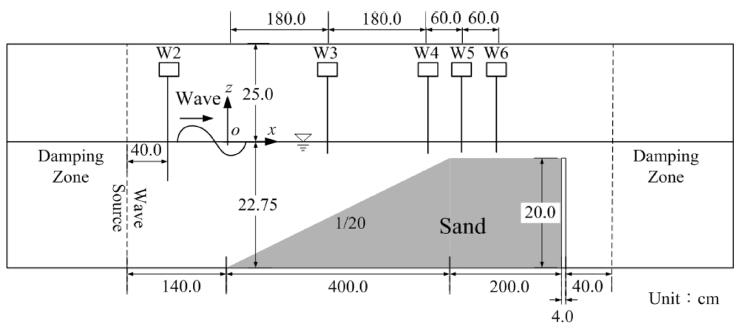

Fig. 4 shows a schematic of a computational domain. As shown in Fig. 4, shallows (height: 20.0 cm; crown width: 200.0 cm; slope gradient: 1/20) composed of fine sand with a median grain size,

*d*_{50}= 0.1 mm, was installed based on the initial topography measured in the hydraulic experiments. In addition, a wave generating source/sink was placed 140.0 cm away from the beginning of the shallow, and damping zones were installed in the offshore side of the wave generating source and the onshore side of the vertical wall. Here, the length of the damping zones was about twice as long as the incident wavelength to reduce the wave reflection from the boundaries. Regular waves were generated with a wave height*H*= 6.5 cm, a wave period_{i}*T*= 1.0 s, and a still water depth*h*= 22.50 cm. The entire domain except for the damping zones was discretized using orthogonal staggered cells with a uniform size of*Δx*= 2.0 cm and*Δx*= 0.5 cm, whereas non-uniform cells widening gradually were used in the damping zones for efficient numerical simulation. The boundary conditions were the same as in Nakamura et al. (2012b). The parameters were the porosity of fine sand*m*= 0.4, the density*r*= 2.65×10_{s}^{3}kg/m^{3}, the critical Shields parameter on the horizontal plane*τ*_{*c0}= 0.03, the submerged angle of repose*θ*= 30.0 and the content ratio of the mud_{r}*p*= 0.0 because the shallow were composed of only fine sand without mud. Other parameters were referred to in the previous section and Nakamura et al. (2011)._{f}### 5.2 Effects of the Cohesive Force on the Topographic Changes of shallows

It is assumed that mud filled the pores of the sand particles forming the shallow. The cohesive resistance force per unit surface area

*f*, the water content_{c}*ω*and the content ratio of the mud*p*are noted as the main parameters which lead to cohesive force, and the effects of these parameters on the topographic change of the shallow were investigated._{f}The effects of

*f*,_{c}*ω*and*p*on the topographic change_{f}*Δz*at t = 60 s are shown in Fig. 5. In the figure, only*Δz*in the range of*x*= 50 − 450 cm of the whole domain was expressed because the topographic change mainly occurred on the slope of the shallow. It was confirmed from Fig. 5(a) that the amount of*Δz*tends to decrease with an increase in*f*. Specifically, when_{c}*f*was increased from 0.1 N/m_{c}^{2}to 1.0 N/m^{2}, it was observed that little deposition emerged on the location from the upper slope to the crown and little erosion appeared on the middle of the slope. This was because, as shown in Fig. 3(c), the critical Shields parameter increased and the bed-load sediment transport rate decreased with an increase in*f*, and finally this sequence had the effect of decreasing_{c}*Δz*. In addition, although*Δz*decreased with an increase in*ω*, the distinction was very small as shown in Fig. 5(b). This was because the small value of*f*, 0.1 N/m_{c}^{2}, was adopted on account of the little topographic change that occurred for*f*= 1.0 N/m_{c}^{2}, and the effects of*ω*on the critical Shields parameter and the bedload sediment transport rate were very small when*f*= 0.1 N/m_{c}^{2}as shown in Fig. 3(a). A similar trend to that shown in Fig. 5(b) is also observed in Fig. 5(c). Furthermore, the variation of the parameters*f*,_{c}*ω*and*p*seems to have little effect on the trend for the topographic change of the shallow. Therefore, by filling the pores of the sand particles with mud, the wave-induced topographic change of the shallow can be reduced without changing the topographic change pattern._{f}The snap shots of suspended sediment concentration at

*t*= 24.0 s when suspended sediments are shown obviously are presented in Fig. 5(a)~(d). In the case of a non-cohesive effect, suspended sediments are observed on the slope of the shallow and near the wall located on the end of the shallow as shown in Fig. 5(a). However, as cohesive force increases, it is shown that the stabilized shallow is observed with low concentration of suspended sediments, in particular in the results for*f*= 1.0 N/m_{c}^{2}. The results considering cohesive effects show similar process to the case with noncohesive effects of sediment transport on the slope of the shallow that initial suspended sediments take place on the region apart from the initial point of the shallow and are entrained to the end of the slope and only apart of the entrained sediments is propagate with flow generated after wave breaking. While the difference of the trend of sediment transport process is not observed during the simulation time, the suspended sediment concentration becomes lower as cohesive effects increase.### 5. Conclusions

In this study, the sediment transport calculation considering the cohesive force generated by mud filled sand particles was proposed. The numerical simulation model incorporating the proposed calculation was verified by applying it to the hydraulic experiments on the topographic change of shallows composed of fine sand, and the basic characteristics of the model were examined. In addition, the sensitivity analysis of the cohesive effects on the topographic change of the shallow were conducted. As a result, the conclusion can be summarized as follows:

1. Through the relationship between the non-dimensional bed-load sediment transport rate and Shields parameter, an increase in the cohesive resistance force per unit surface area

*f*, the water content_{c}*ω*and the content ratio of the mud*p*result in an increase in the critical Shields parameter and a decrease in the bed-load sediment transport rate. Furthermore, the existence of mud in the pores of the sand particles indicates the importance of proper modeling taking into account the cohesive effects. This is because the results presented different patterns for the bed-load sediment transport rate for cases considering cohesive and non-cohesive effects, in spite of having the same critical Shields number._{f}2. By carrying out a sensitivity analysis on the effects of the three parameters,

*f*,_{c}*ω*and*p*, on the topographic change of the shallow, it was confirmed that the topographic change was decreased with an increase in_{f}*f*,_{c}*ω*and*p*. In addition, the results show that taking into account the cohesive effects had little influence on the topographic change pattern. Consequently, the possibility of reducing topographic change by containing the mud in the sand particles with little change in its trend is suggested._{f}From these results, the computational capability of this proposed model for analyzing sediment transport problems involving various conditions of mixed sediments coexisting with sand and mud was confirmed. However, it is desirable to validate the proposed calculations with hydraulic experiments.
